Sheet Metal Punching

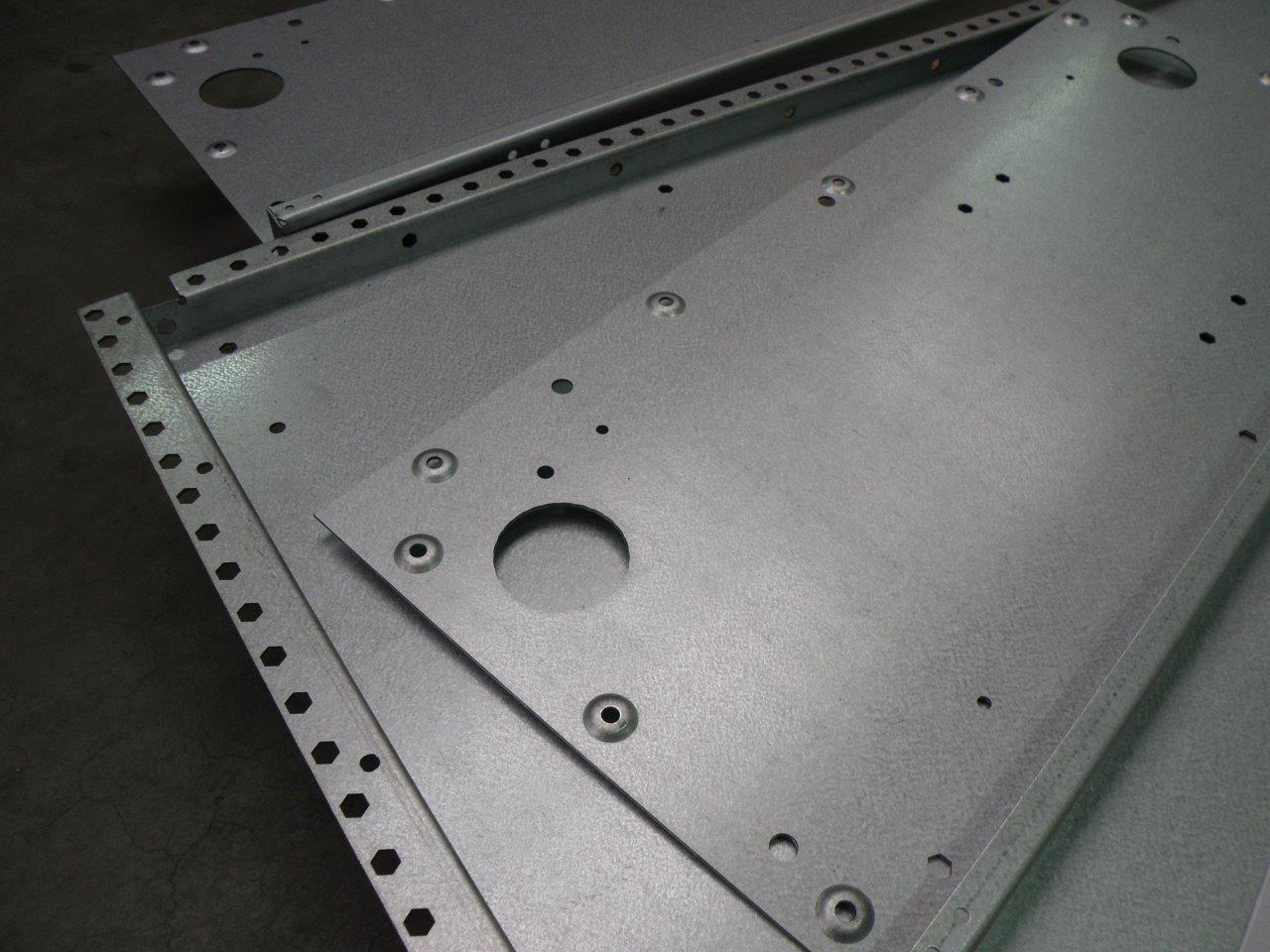

Our Company's offer includes cutting with punching machines as well as plastic working services.

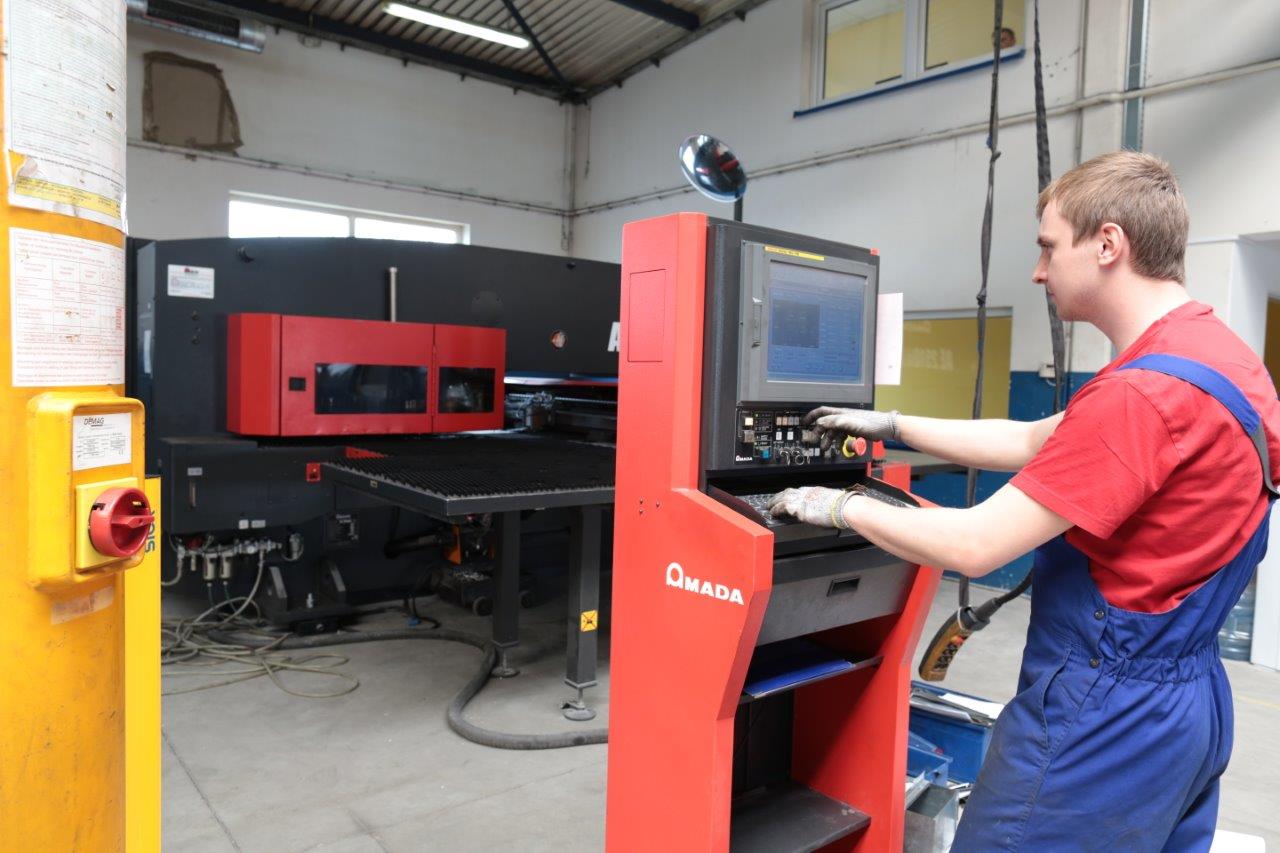

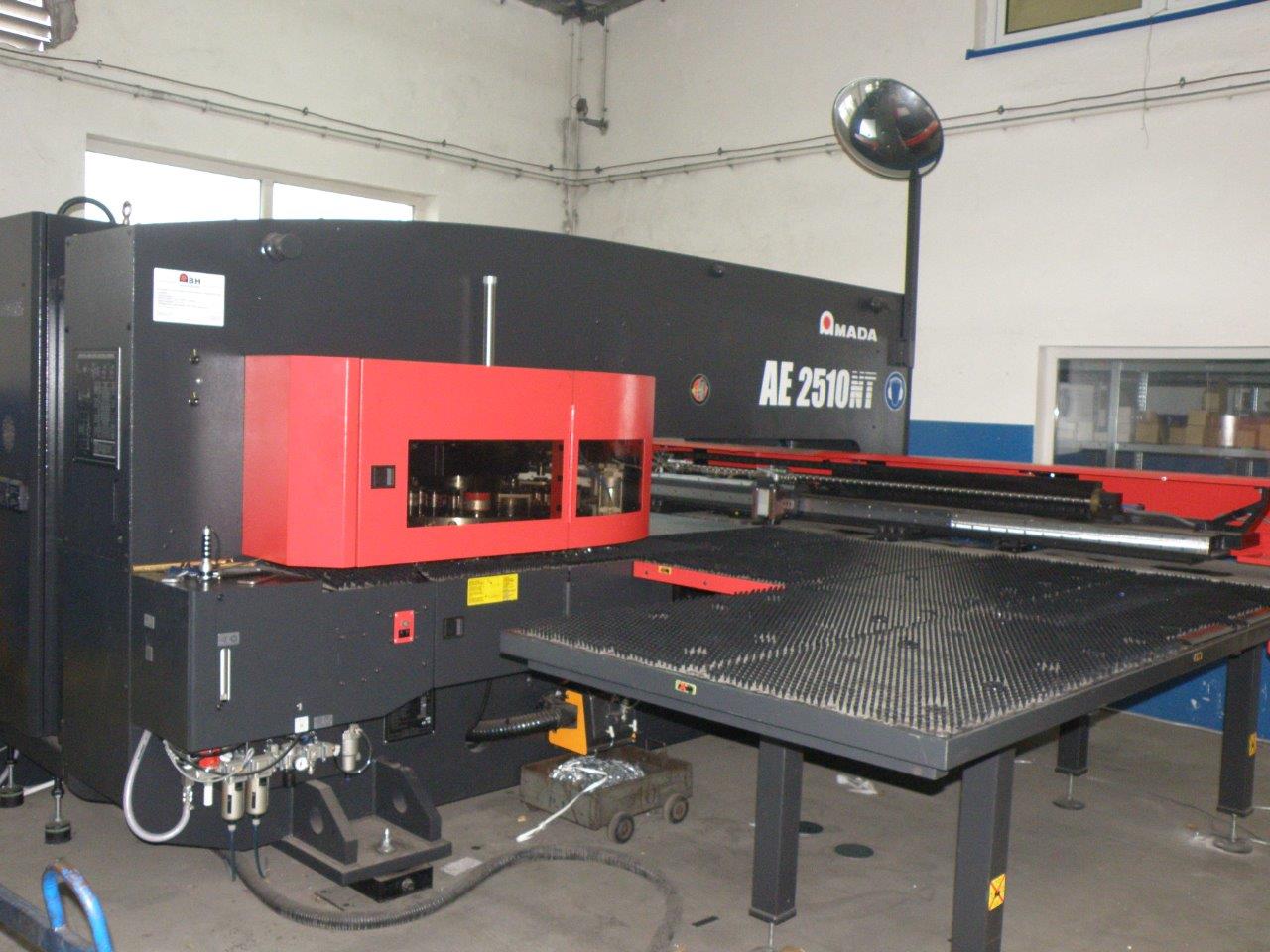

Sheet metal punching is executed using AMADA AE 2510 turret punch press. This modern device sports a reliable servo drive and a 51-tool head. An important feature of the machine is its bridge frame construction that guarantees proper rigidity.

Key characteristics:

• 51 station turret, with 4 auto-index stations. Forming and threading operations can be conducted, using adequate tools.
• Servo drive technology Compared with hydraulically-driven presses, the AE series offers trouble-free operation and short maintenance time (if required).
• AMNC-F controls
• Lift brush table that can be program-controlled and automatically raised to ca. 5 mm to ensure touch-free positioning of the workpiece over the tool system, thus leaving the surface completely clean.
• Tool lubrication feature to maximize usable life.
• Power Vacuum functionality.
• High density brush table to allow for processing of thicker sheets.
